Highlights
Exterior and interior refurbished in 2018
14
KA-Band
Full programs with Falcon Care
EASy II cert. 5th (load 12.6.2)
FAA Compliant
5,950
51,000 Ft
Gallery
Cabin

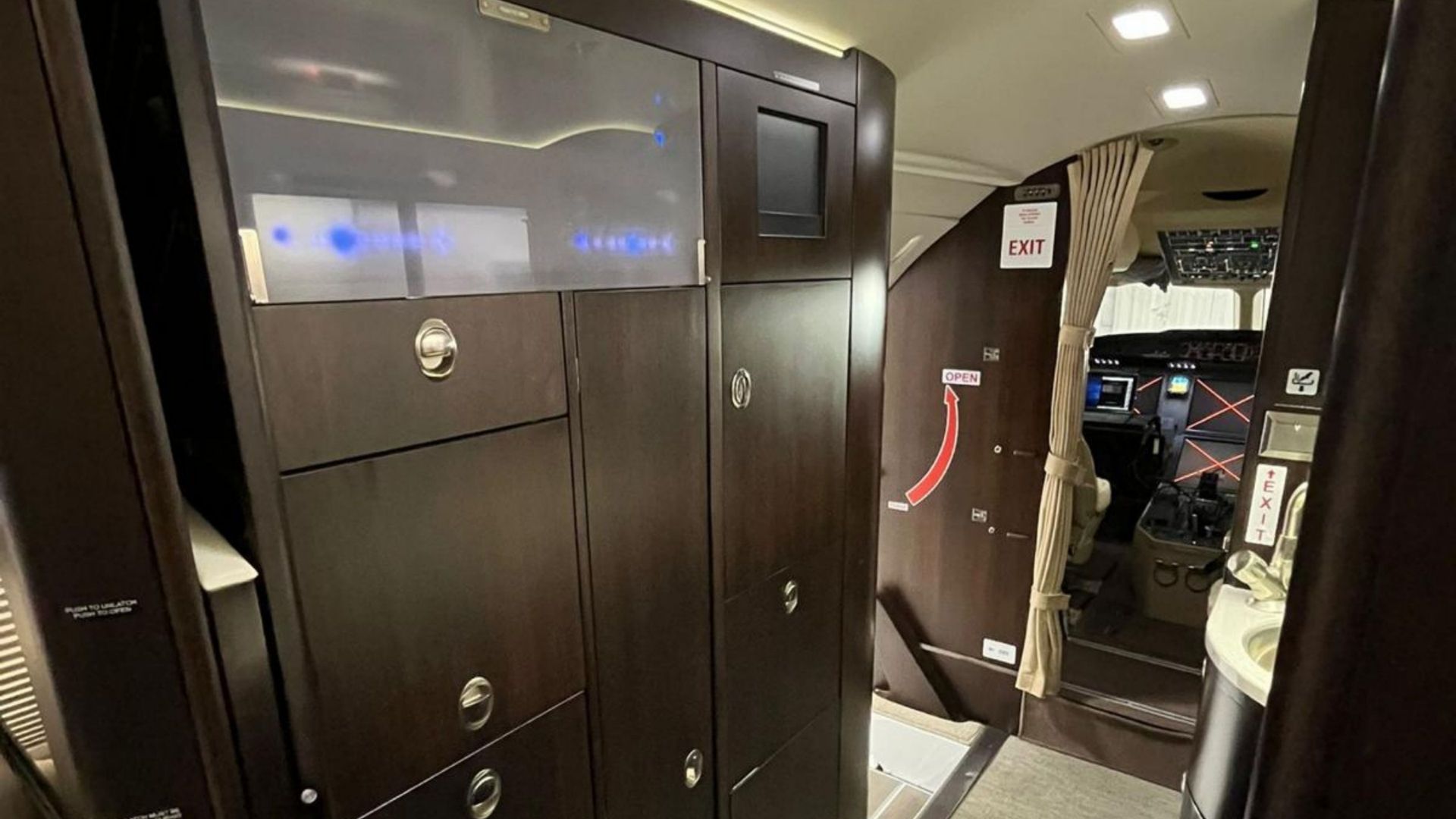

Hight temperature Enflite oven, TIA Microwaveoven, Lacobucci De Longhi Expresso machine, 2ea Satholf thermos carafes.

KA-Band

Rockwell Collins FCMS, Airshow 4000, dual DVDplayer, 1ea NTSC video interface, 1PC VGA interface, three 21.3” bulkheadmonitor (fwd and aft)

2018
Cabin Configuration

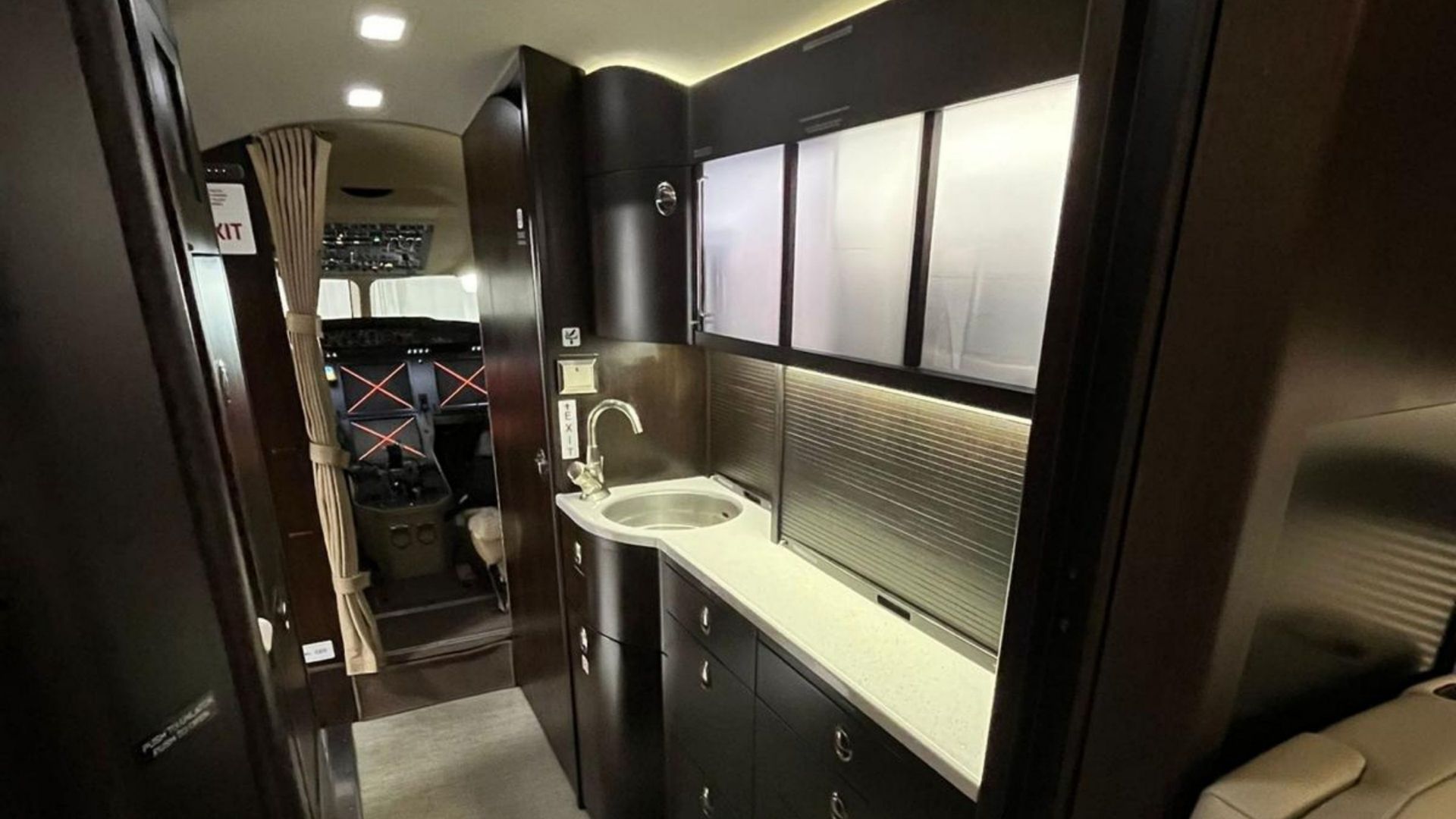

- Galley

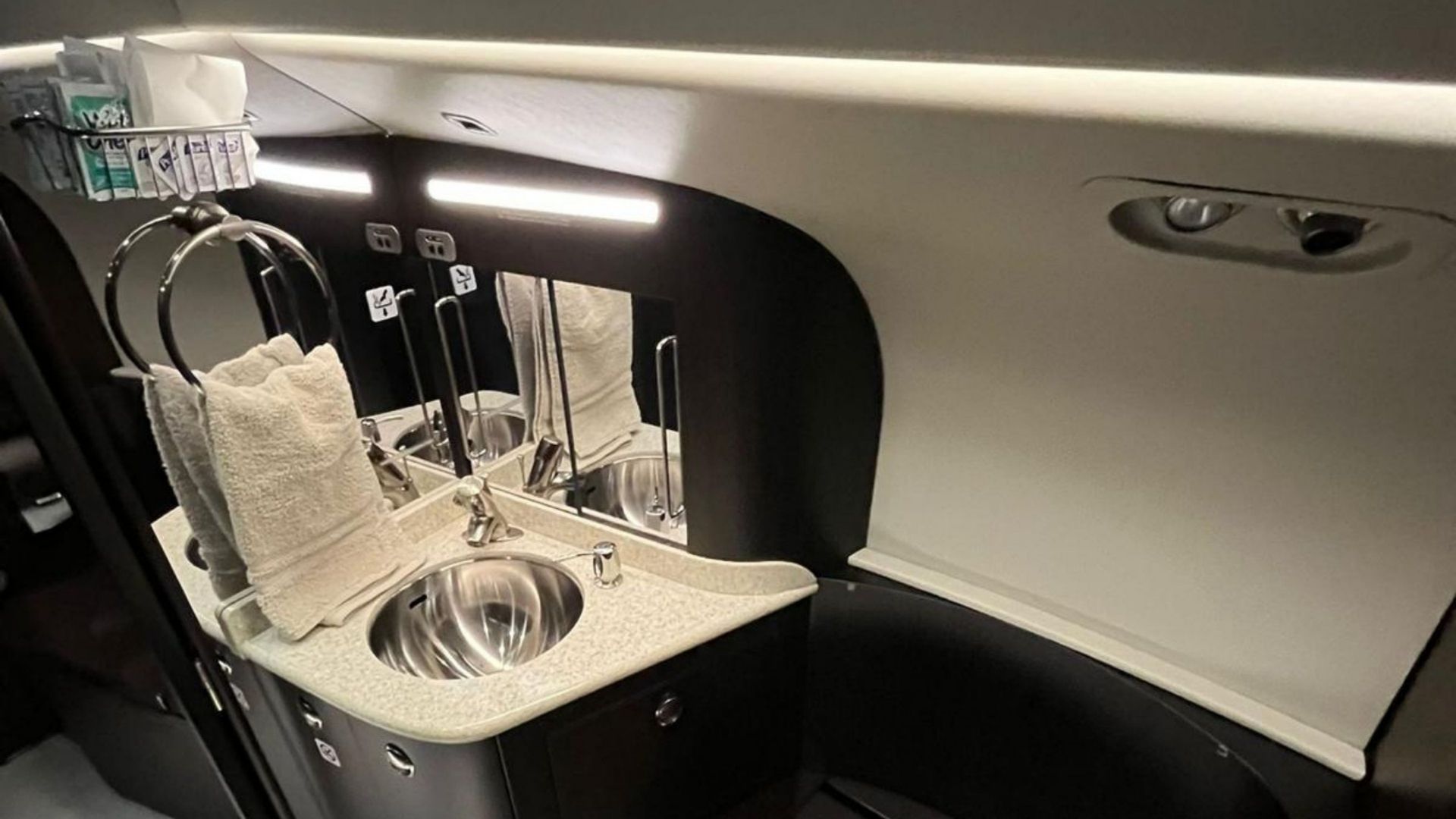

- Fwd Lavatory

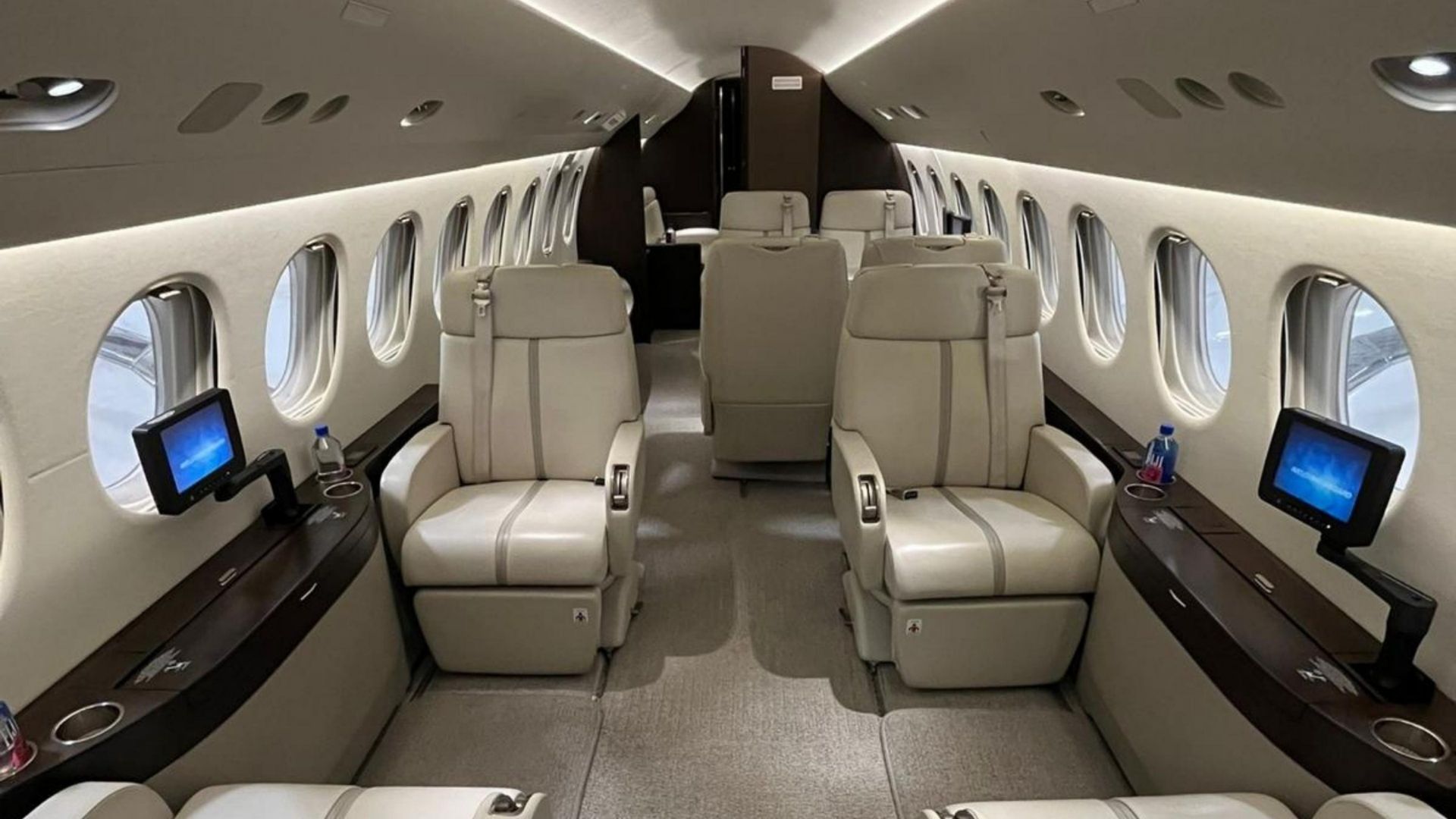

- Four 20” single seat and two console tables

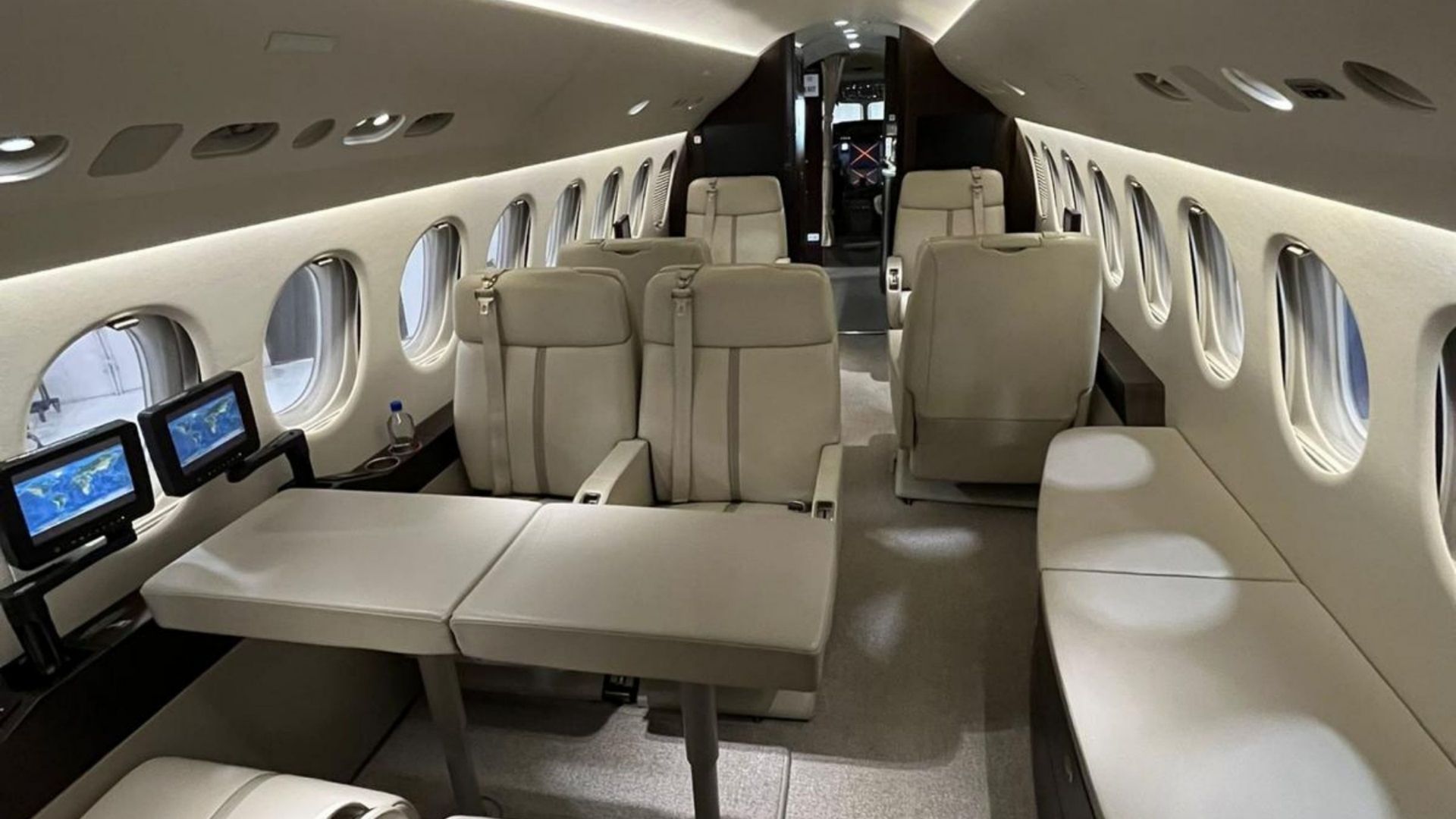

- Two 20” dual seats, electrical dining table and 100” low height cabinet

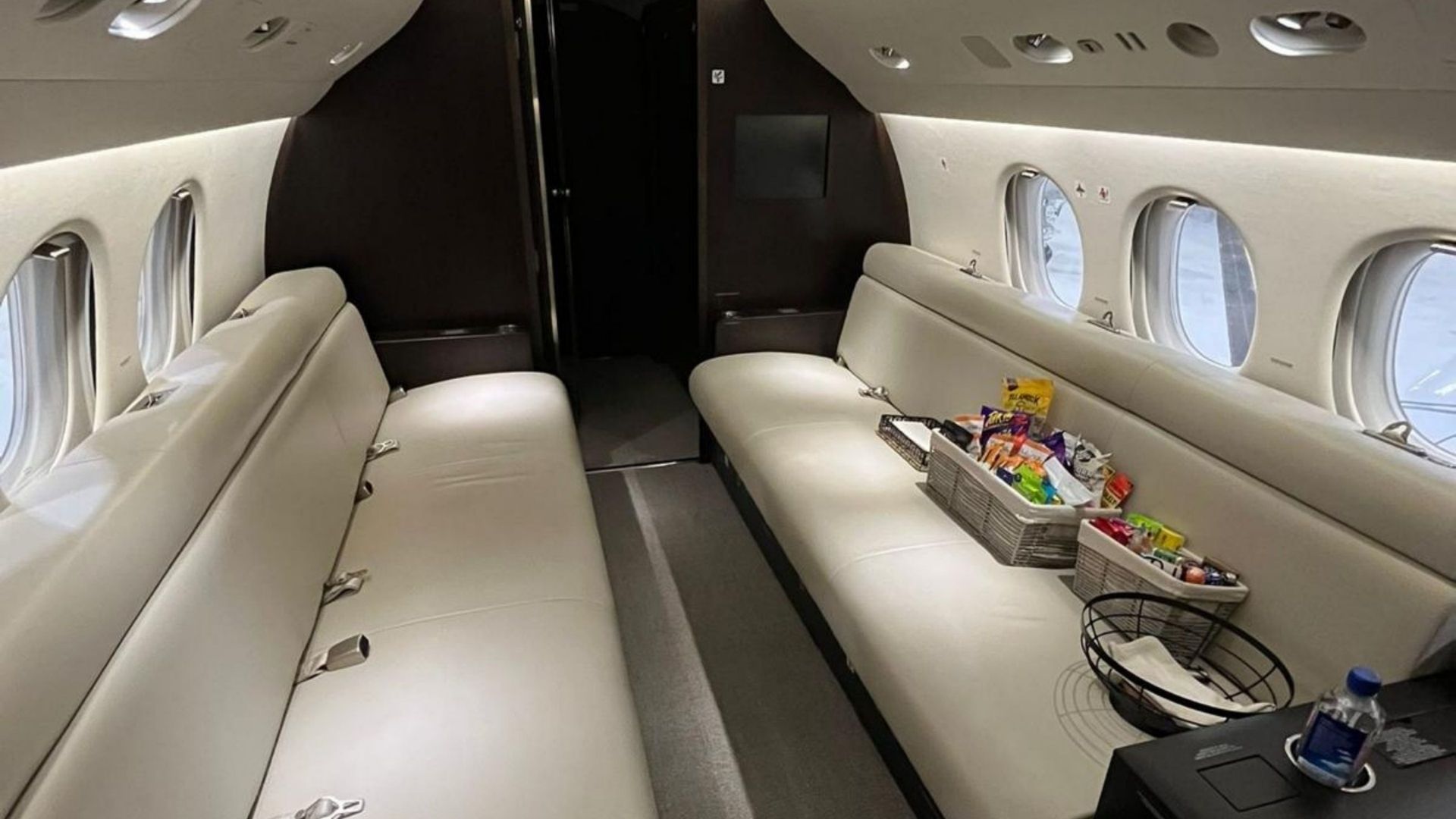

- LH and RH 80” three-place divan
- Aft Lavatory
- 140 Cubic Feet
- Approx Weight Limit: 1,600 Lbs
Performance
Range Map
You are entering the technical zone

Maximum range
Range at .80 Mach cruise (8 pax, 3 crew, NBAAIFR reserves)

Avionics
- Flight Display System: Honeywell EASy (4x 14.1” DU-1310 displays)
- Head-Up Guidance System: Rockwell Collins HGS-5860
- Flight Management System: Triple Honeywell EASy Primus Epic w/ Jeppesen charts
- Flight Control System: Honeywell EASy (GP-600 Control Panel)
- Autothrottle System: Honeywell EASy
- Flight Deck Audio: Triple Honeywell AV-900
- GPS: Dual Honeywell EPIC GPS (SBAS capable)
- EGPWS: Honeywell EASy with Windshear
- COM (VHF) Receiver: Triple Honeywell TR-866B with 3rd VHF in “Mini MRC”
- NAV (VHF) Receiver: Dual Honeywell NV-877A
- HF COM: Dual Collins HF KHF-1050
- DME: Dual Honeywell DM-855
- ADF: Dual Honeywell DF-855
- Air Traffic Controller: Dual Honeywell XS-858B
- TCAS II: ACSS TCAS 3000
- Inertial Reference System: Triple Honeywell LASEREF V
- Weather Radar: Honeywell Primus 880
- Radar Altimeter: Dual Honeywell KRA-405B
- Recorder: Dual Honeywell AR-COMBI
- Quick Access Recorder: CTS QAR
- SAT AFIS / SATCOM: KA Band
- ELT: ELTA ADT-406AFN2
- Electronic Flight Bag: Dual CMA-1100
Speed (Mach)
- Maximum Operating Mach Number: 0.90
- Cruise Speed Mach Number: 0.80
Takeoff Performance
- Take Off distance: 5,710 ft / 1,740 m
- Max. Take Off Weight: 70,000 lb / 31,300 kg
- Landing Distance: 2,070 ft / 630 m
- Max.Landing Weight: 62,400 lb / 28,305kg
- Approach Speed: 104 kias / 195 km/h
Operating altitude
- Maximum operating altitude: 51,000 ft / 15,545m
Engines
- 3 Pratt&Whitney Canada PW307A
- EASy Flight Deck (with Honeywell Primus Epic System)
